The fully automatic underground garage flood barrier, with its unique and innovative design, stands out in the flood control equipment market and has become an indispensable part of the modern urban disaster prevention and reduction system. This barrier cleverly combines technology and innovation, using high-performance lightweight materials such as reinforced aluminum alloy or lightweight composite materials. These materials not only endow the barrier with excellent strength and durability, capable of withstanding the huge impact force of floods, but also greatly reduce the weight of the equipment, making operation easier and maintenance costs lower.

In terms of flood control mechanism, the fully automatic underground garage flood barrier adopts an intelligent design concept. The integrated high-precision water level sensor can continuously monitor the water level changes in the surrounding environment 24 hours a day. Once the water level exceeds the preset safety threshold, the built-in intelligent control system will immediately start, driving the motor to quickly deploy the barrier, forming an indestructible waterproof wall, effectively isolating floods and ensuring the safety inside the underground garage. This process is fully automated and does not require manual intervention, greatly improving response speed and flood control efficiency.

In terms of installation and maintenance, the fully automatic underground garage flood barrier demonstrates extremely high flexibility and convenience. Its modular design allows users to quickly assemble or disassemble according to actual needs, greatly shortening the installation cycle and reducing construction difficulty. At the same time, the lightweight materials and compact design of the barrier make it easy to store when not in use, without occupying additional space or affecting the daily traffic function of the underground garage, truly achieving a balance between aesthetics and practicality.

More importantly, this flood barrier fully considers the needs of environmental protection and energy conservation. In terms of material selection, priority should be given to using recyclable or environmentally friendly materials to reduce their impact on the environment; In terms of energy use, intelligent control systems can optimize energy consumption and only activate when necessary, ensuring long-term economic and sustainable operation.

In summary, the fully automatic underground garage flood barrier has become an essential tool for flood control in low-lying areas such as underground garages, subway stations, tunnels, etc. due to its excellent design, efficient flood control performance, convenient installation and maintenance, and environmental protection and energy saving characteristics. It not only effectively resists flood invasion and protects people's property safety, but also plays an important role in the construction of urban disaster prevention and reduction system, contributing to the construction of a safe and harmonious urban environment.

Water buoyancy barrier structure

SUS304 stainless steel bottom frame, stainless steel wire rope, buoyancy baffle, EPDM flexible seal, SUS304 anti slip panel, etc.

The product adopts modular assembly technology, which can achieve rapid on-site installation. The working principle of this device is that the overall buoyancy of the baffle is less than that of water. The device is fixed on the ground, and when the area of water exceeds the height of the baffle, the buoyancy of the water pushes the baffle upward to rotate. When the accumulated water drops, the baffle synchronously drops with the water level, ultimately achieving automatic flood prevention and water blocking.

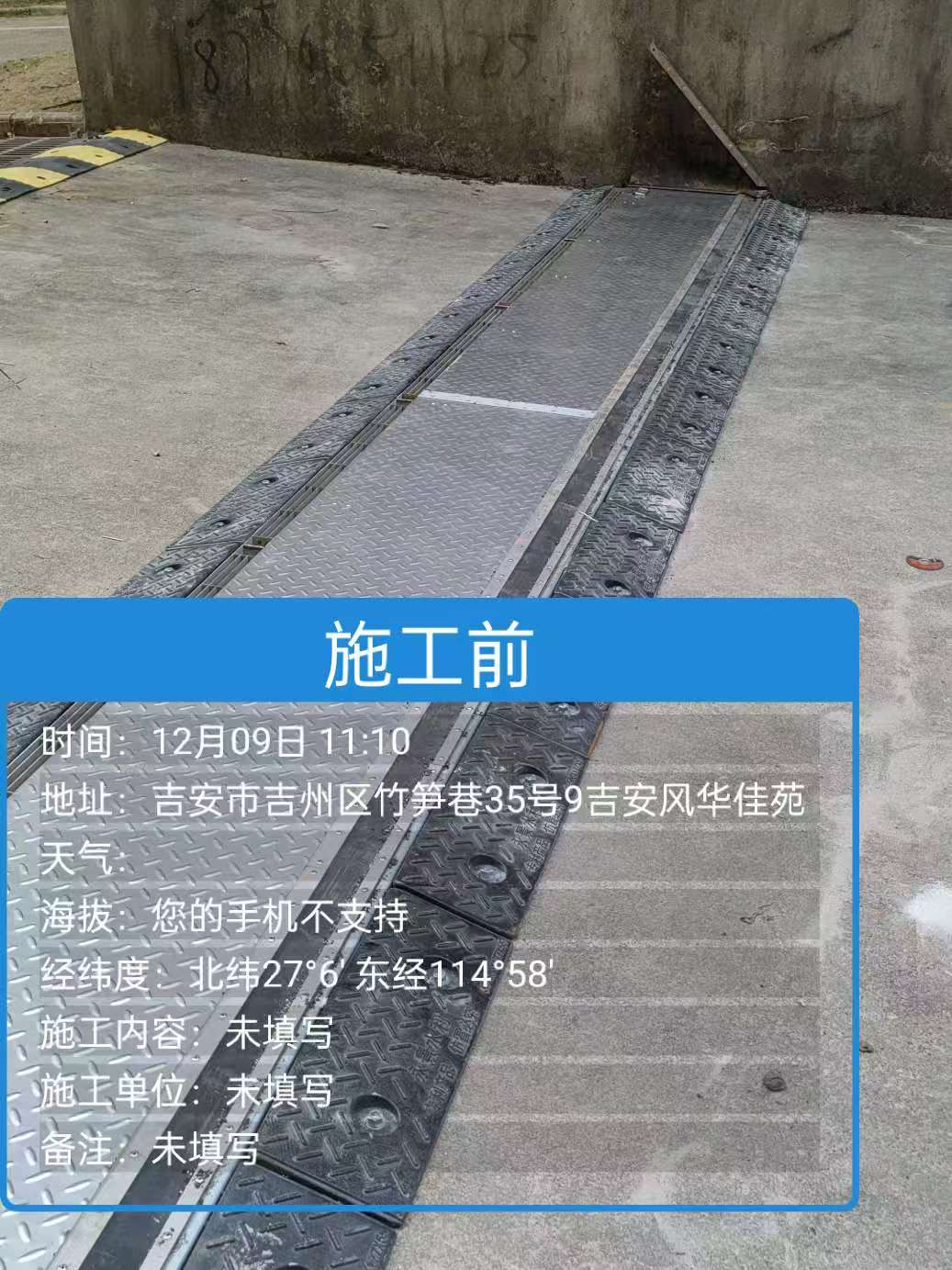

The overall barrier can be installed by ground embedding or surface installation, and the embedded installation barrier device is flush with the ground to achieve barrier free passage. If installed on the ground, the barrier device will be about 5 centimeters above the ground and can be used as a speed bump for vehicles entering and exiting.

During non flood season, there is no standing water on the ground, and the barrier is in close contact with the bottom frame, allowing pedestrians and vehicles to freely pass through.When there is water accumulation on the ground during the flood season, the accumulated water flows into the bottom cavity through the bottom frame inlet grille, and the buoyancy of the water is used to push up the baffle to achieve water blocking function.
