Product Parameters
| Raw Material | Mild Steel or Stainless Steel, Gasket, mechanical hand wheel |
| Height | Fit the door height |
| Width | MAX. 2000mm for each leaf |
| Panel Thickness | T8mm |
| Door Frame | T5*100*100 Square Tube |
| Gasket | EPDM |
| Surface | Powder Coated |
| Color | Customized |
| Application | Garage, Parking Lot, Buildings, Shopping Front, Residence Door, Factory Entrance, etc. |
Product Description
In conventional flood control scenes, aluminum demountable flood barrier can efficiently protect the dry area behind it, but if the flood level exceeds its maximum designed flood protection height, water would finally over top the panels and intrude the dry area, because the top of the demountable flood barrier is not sealed but open. For those doors which require complete sealing even
when the flood has submerged the full door height, such as computer rooms, control rooms equipped with valuable electrical devices, etc., our watertight flood gate is a good option for such flood mitigation requirements.

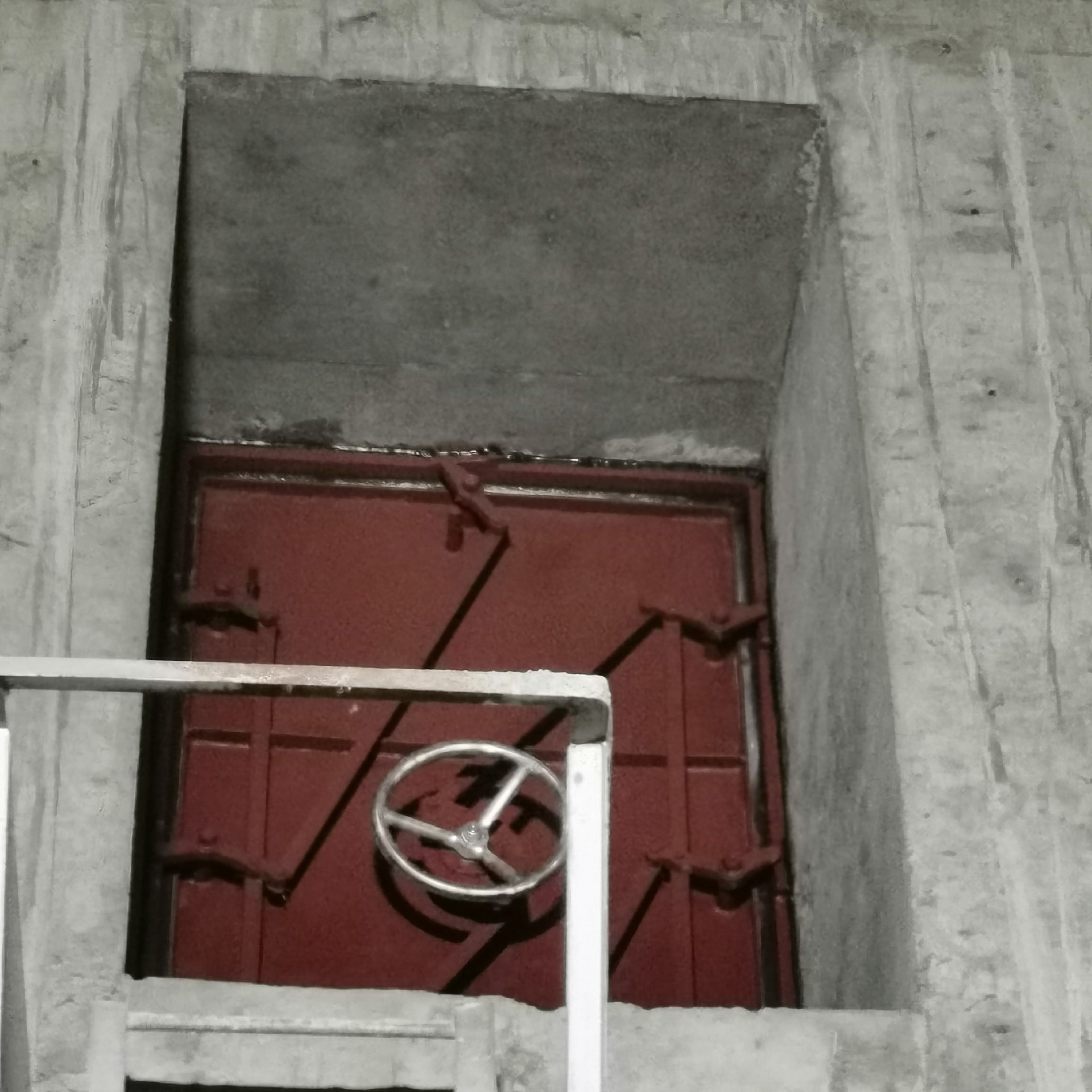

This heavy-duty watertight door is ideal for openings with light traffic that need to be sealed quickly and easily in the event of flooding. The main structure of the flood door is engineered in mild steel or stainless steel sheets powder coated in fluorocarbon anti-weathering paint with supporting frames in both horizontal and vertical directions as reinforcement, with a smart design of EPDM seals around the edge of the gate being mechanically controlled by a rotating handwheel in the gate with minimal maintenance requirements, it can quickly sealed the doorway in great watertightness against every flood threat.
For those doors in large opening which should be split into 2 leafs, it has a design of removable central column in the middle to make sure the installation is very easy, it is designed in customized dimension to fit the doorway and it is in a simple but firm hinge design to fix on wall. Normally it is designed as an outward door, because the water pressure on the front of the door will push the gate more firmly to the gaskets to increase the watertightness.For those doors without human attention, it can be customized in remote control by mobile APP or automatically driven by adetecting sensor of flood level as option.
Specification:
| Product | Permanent Glass Flood Wall |
| Invesment | More |
| Deploy Time | Once for all after first installation |
| Deploy Labor | None |
| Deploy Cost | None |
| Environment Impact | Clean the surface only |
| Appearance | Fully transparent with no visual blocking in gorgeous appearanc |
| Structure Strength | Great strength in T32mm triple later laminated safety glas |
| Service Life | Permanent Use for more than 20 years for main structure of aluminum and safety glass |
| Water Tightness | 0 leakage can be achieved if full selant applied due to it will not be dismantled anymore |
| Management | None |
| Safety | Well engineered structure, calculated and tested material to offer reliable protection |
Features:
1. Great water tightness
2. Convenient closure and open
3. Daily pedestrian pass
4. Visual Amenity
5. Durable Design Life 10-20 years
6. Easy Maintenance
7. Remote or automatic activation available as option
